Durable Metal Filter Disc / Extruder Screen Pack For Rubber / Plastic Industry
Extruder Screen Mesh Description
Single Extruder Screen Filters
They are predominantly used in the plastic reclamation industry, often with a Dutch Weave filter used in conjunction with a plain weave support filter.
These are also used in the extruded profiles and blown film industries where the contamination of the raw material is less and there is often lower pressure within the extruder head.
These are excellent for use in any field where a specific graduated filtration is required.
Another advantage is that it stops single screen filters being placed into the extruder incorrectly. For example a pack consisting of three meshes could consist of a 10mesh / 20mesh / 10mesh; meaning that whichever way the wire mesh filter is placed into the extruder head, it will work correctly.

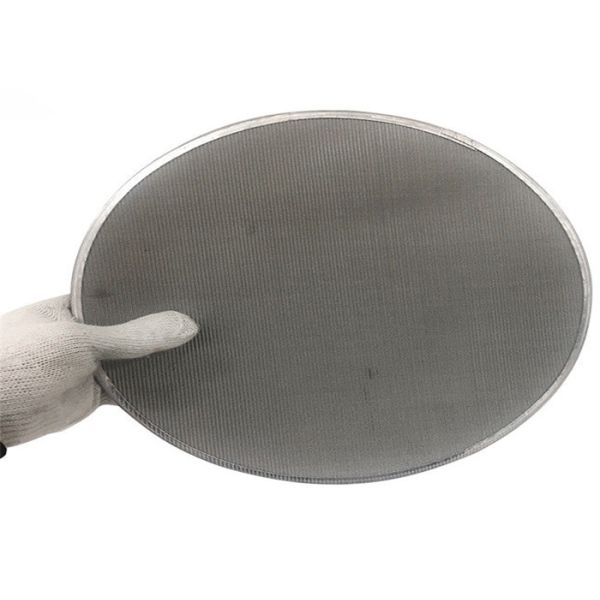

These are spot-welded packs that have an Aluminum or Stainless steel rim added to them to give the wire mesh filter extra rigidity and strength.
These are excellent for use where the extruder screen filter is operating at high pressures or if there is a danger of contamination getting around the edge of the breaker plate.
Extruder Screen Mesh Specification
| Material | 302, 304, 304L, 316, 316L, 310 stainless steel woven wire cloth |
| Weave style | plain dutch weave, plain weave, twill dutch weave, twill weave, and reverse dutch weave |
| Mesh count | Usually 20 mesh - 650 mesh. |
| Shape | Round, oval, rectangle and other special shapes |
| Dia. of wire mesh disc screen | from 5 mm to 600 mm |
| Thickness | 0.1 mm to 6 mm |
| Layer | single layer or multilayer |
Stainless Steel Extruder Screen Mesh Applications
| 1. Plastic and rubber industry |
| 2. PVC film |
| 3. Food industry |
| 4. Chemical industry |
Extruder Screen Mesh Features
1) high mechanical strength , strong rigidity , easy processing , simple assembly and convenient maintenance
2) uniform pore distribution , accurate filtering accuracy , high filtering efficiency and stable flow
3) good effect of mass transfer , heat transfer and solution , high efficiency and low gas consumption
4) high wear resistance , high heat resistance and corrosion resistance , suitable for a wide filtering environment
5) it can be cleaned repeatedly with long service life
